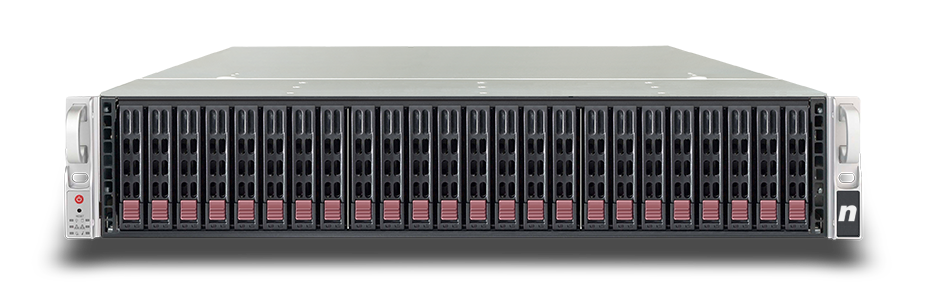

Nfina 6224JBOD Expansion Storage Photo

2U Rack-Mount JBOD Expansion Storage

Specifications          Support Documents          Data Sheet          Get a Quote

The Nfina Technologies 6224JBOD-B is an Nfina designed high-density 24-bay storage expansion unit that simplifies adding storage in preexisting storage networks. This device is a 2U rack mount device, designed for maximum storage capacity. Nfina Technologies also offers hybrid cloud solutions, and we believe that Nfina JBODs are a nice complement to our hybrid cloud solutions. In a typical configuration, users are allowed to seamlessly integrate up to six JBODs into the network which in turn enables incremental storage expansion.
With the Nfina 6224JBOD-B, users can easily scale their storage capacity without disrupting their existing network infrastructure. This allows for a cost-effective and efficient way to handle data growth, as businesses no longer have to invest in expensive and complex storage solutions. The device also features hot-swappable drive bays, allowing for easy maintenance and upgrades without any downtime.
But what sets the Nfina 6224JBOD-B apart is its advanced management capabilities. It comes equipped with an integrated web-based interface that provides real-time monitoring of all connected devices and allows for remote management from anywhere in the world. This eliminates the need for on-site IT personnel, making it a practical solution for small and medium-sized businesses.
Moreover, this JBOD unit offers high-speed connectivity options such as SAS 3.0 (12Gbps) or SATA III (6Gbps), ensuring lightning-fast data transfer rates. It also supports multiple RAID configurations, providing users with flexibility in choosing the level of redundancy they require. In summary, the Nfina Technologies 6224JBOD-B is a reliable and versatile storage expansion unit that simplifies storage expansion while offering advanced features at an affordable price point. With its compact design, high-speed connectivity.

Specifications

Form Factor
2U rack-mount enclosure
Front Drives
24x 2.5” hot-swap drive bays
Storage Capacity
368/6TB per JBOD
Connectivity
12Gb/s SAS
Interface
4x Mini-SAS HD ports (SFF-8644)
Expander
1x SAS expander
Power Supplies
2x hot-swap, 650W, Platinum certified
Remote Monitoring
1x IPMI port (Monitor temp readings, provides power and fan management)
Regulatory Certifications
UL/CSA Certified (USA and Canada), CE (Europe), FCC Part 15 Subpart B (US), ICES (Canada), UKCA (UK), VCCI (Japan), RCM (Australia), NRTL (USA), CB (USA), RoHS (Europe), REACH (Europe), WEEE (Europe)
Warranty
5-Year
