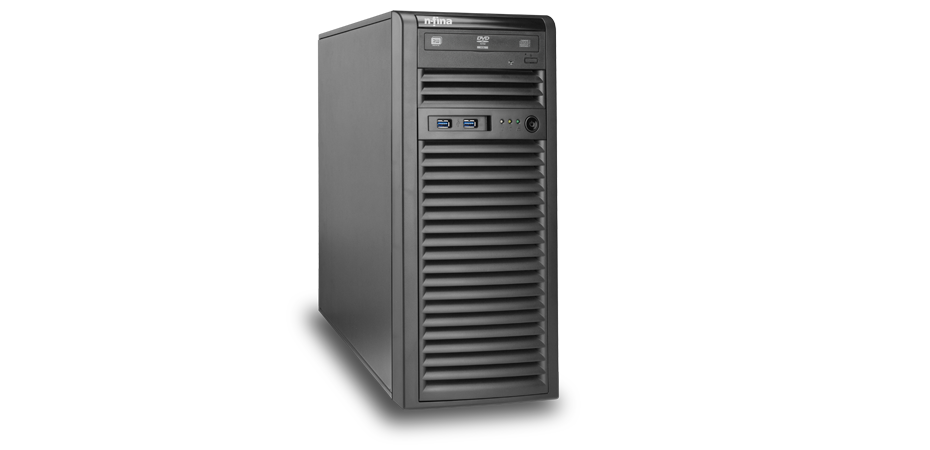

Nfina 114E-T Tower Server Photo

Hyperconverged Edge Computing

Specifications          Support Documents          Data Sheet          Get a Quote

Nfina’s 144T-E mid-tower is an entry-level model ideal for small businesses that require data redundancy but minimal VMs for local and remote offices and desire the footprint of a desktop unit. Use the 144T-E hyperconverged device for data entry, redundant storage, compute, point of sale or backup, and DR applications. This Nfina hyperconverged solution simplifies, protects, and ransomware proofs your business data. Copies of redundant system data are maintained on-site and off-site. In the event of an on-site node failure, the second node will automatically failover with zero downtime. Fully managed Infrastructure-as-a-Service (IaaS) and Disaster Recovery-as-a-Service (DRaaS) options are also available with this model.

Specifications

Form Factor
Mid-tower, single-socket server (desktop server computer)
Processor
Intel® Xeon® Processor E-2400 Series
Number of Processors
1
CPU Cores
Up to 8 cores, 16 threads, 95W
CPU Speed
3.2GHz to 5.6GHz
CPU Cache
Up to 24MB Intel® Smart Cache
Memory
4 DIMM slots, 128GB max memory capacity
Memory Speed
4400 MT/s
RAID
Software 0, 1, 5, 10 included, LSI® hardware RAID optional, Caching available
Internal Drives
Fixed Drive Bay options:
4x 3.5" SSD/HDDs - or -
4x 2.5" SSD/HDDs (requires 2.5" adapters) - or -
8x 2.5" SSD/HDDs (requires drive cage kit)
1x M.2 NVMe/SSD (2110/2280), PCIe (optional)
Optical Drive
1x 5.25" DVD-ROM SATA drive included, 24X DVD-RW,
(If 8-bay drive cage is selected the optical drive will be removed from the configuration.)
Storage Capacity
Supports up to 72TB, drive type dependent
1x M.2 1TB SSD
I/O Specifications
4x USB 3.1 (2 front, 2 rear) 1x USB 2.0 (rear)
1x Serial (rear), 1x VGA (rear)
LAN Ports
2x 1GbE LAN ports standard, other options available
1x 1GbE (dedicated management port)
PCIe Slots
2x PCIe Gen 5 x8 FHFL slots
2x PCIe Gen 4 x4 FHFL slots
Power Supplies
1x 400W 80 PLUS Gold Certified
Remote Management
IPMI 2.0, KVM over HTML5
TPM
Version 2.0, optional
OS Supported
Microsoft® Windows Server® 2022, Windows® 11 Pro, VMware® ESXi™ 8.0, Proxmox, Nfina-Store, Red Hat® RHEL 8.8-9.2, SUSE® SLES 15 SP4, Ubuntu 22.04.2, Rocky Linux 8.7-9.1, Oracle Linux 9.2, CentOS™ 8.5, more options available
Regulatory Certifications
UL/CSA (US & Canada), FCC (US), CE Marking (Canada & Europe), NRTL Nemko (US, Canada), ICES (Canada), UKCA (UK), RCM (Australia/NZ), CB, WEEE (Europe), RoHS Compliant (EU), REACH (EU)
Warranty
5-Year
